Micro-GameBoy
Used:
Components Used:
- Seeed Studio XIAO ESP32C3
- Buzzer
- 4 Push Buttons (+ resistors)
- Adafruit SSD1306 0.96 Inch OLED Display
- DHT11 Sensor
- Keyestudio Rotary Encoder
- Seeed Studio XIAO ESP32C3
- Buzzer
- 4 Push Buttons (+ resistors)
- Adafruit SSD1306 0.96 Inch OLED Display
- DHT11 Sensor
- Keyestudio Rotary Encoder

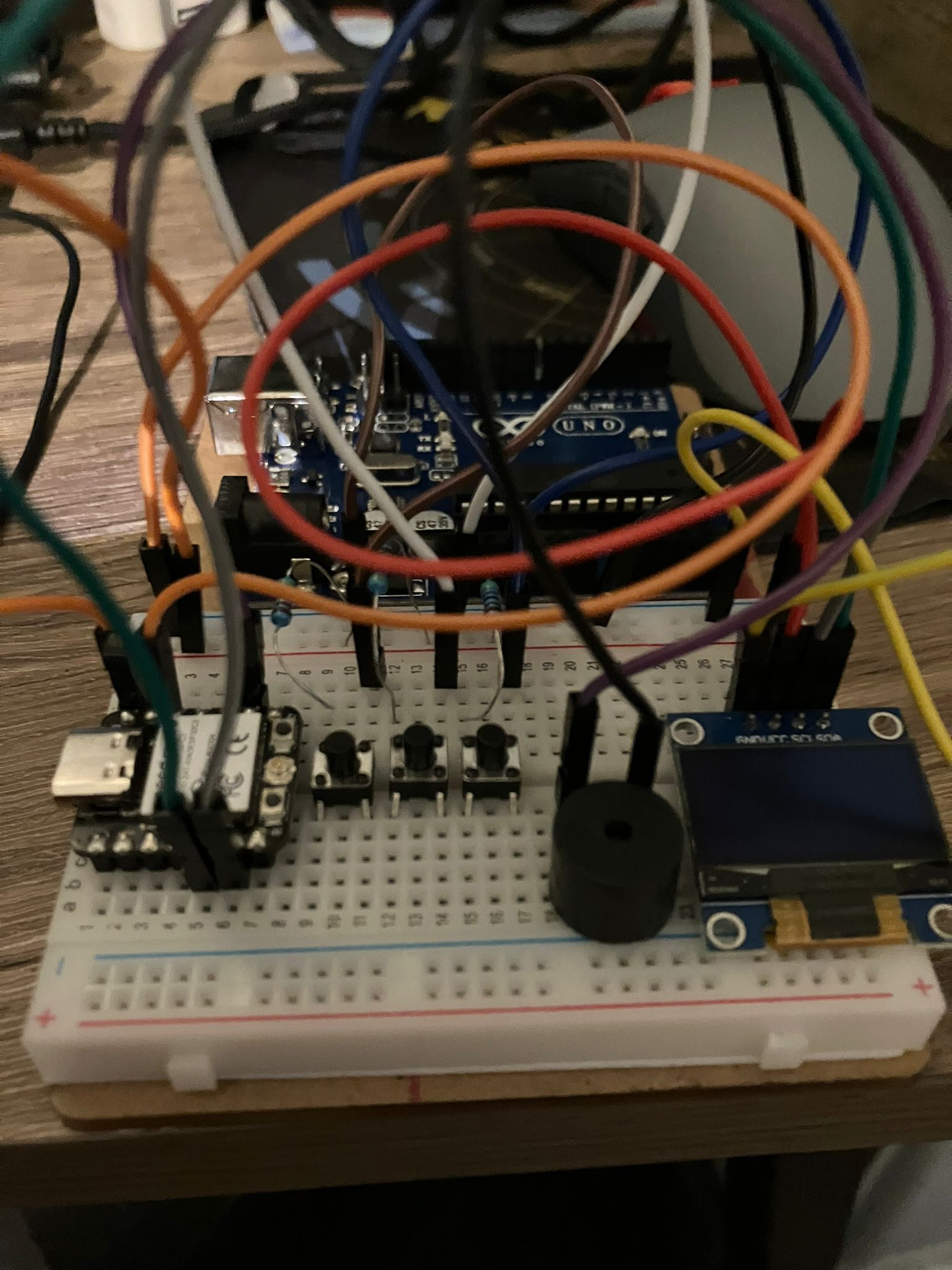

Started out as a simple circuit for the ESP32 using 3 buttons, the OLED display, and a buzzer. The first program it ran was a buzzer frequency test.

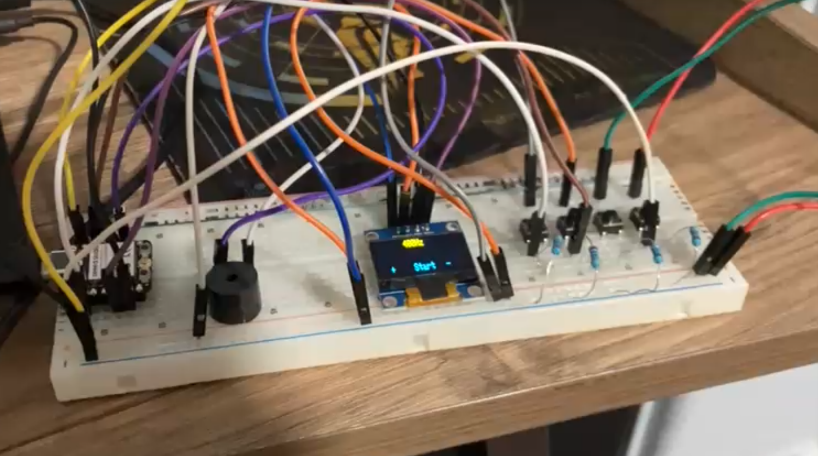

Moved the circuit onto a bigger breadboard to do more things.

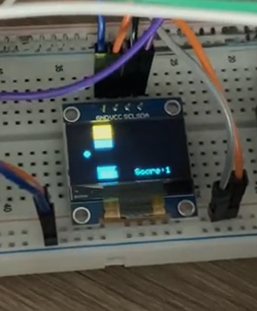

The buzzer program was from my friend, but I wanted to learn how to program myself, so I asked ChatGPT to generate code for a snake game, and I learnt from there.

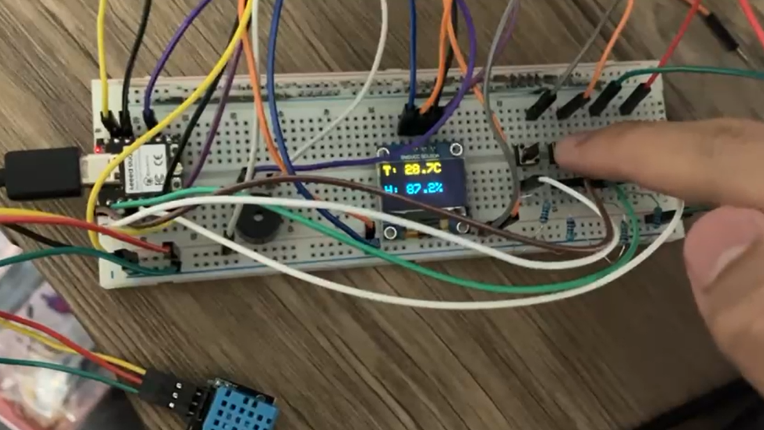

I then added the DHT11 sensor to see the temperature and humidity.

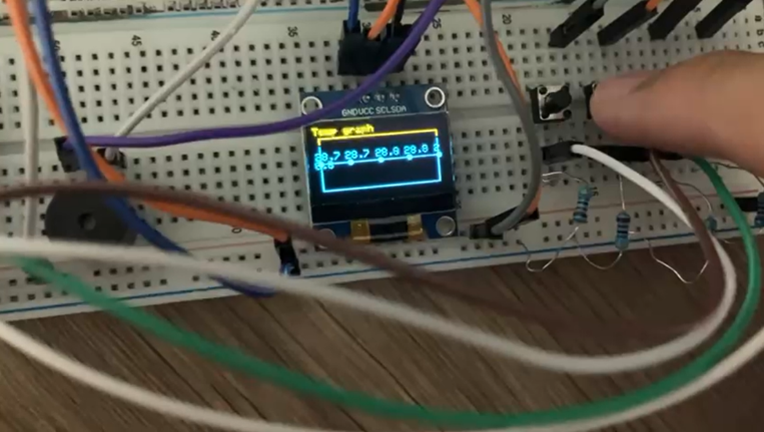

With coding help from AI, I could now visualise the temperature or humidity on a graph.

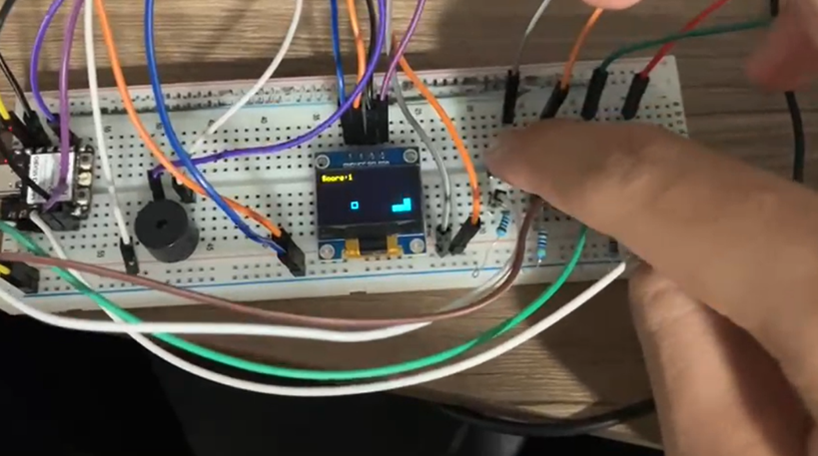

Here is a Flappy Bird game I added:

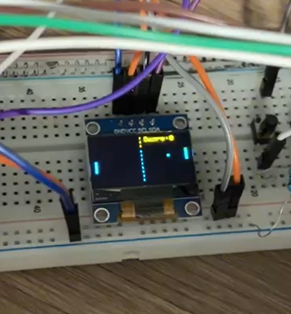

Pong game:

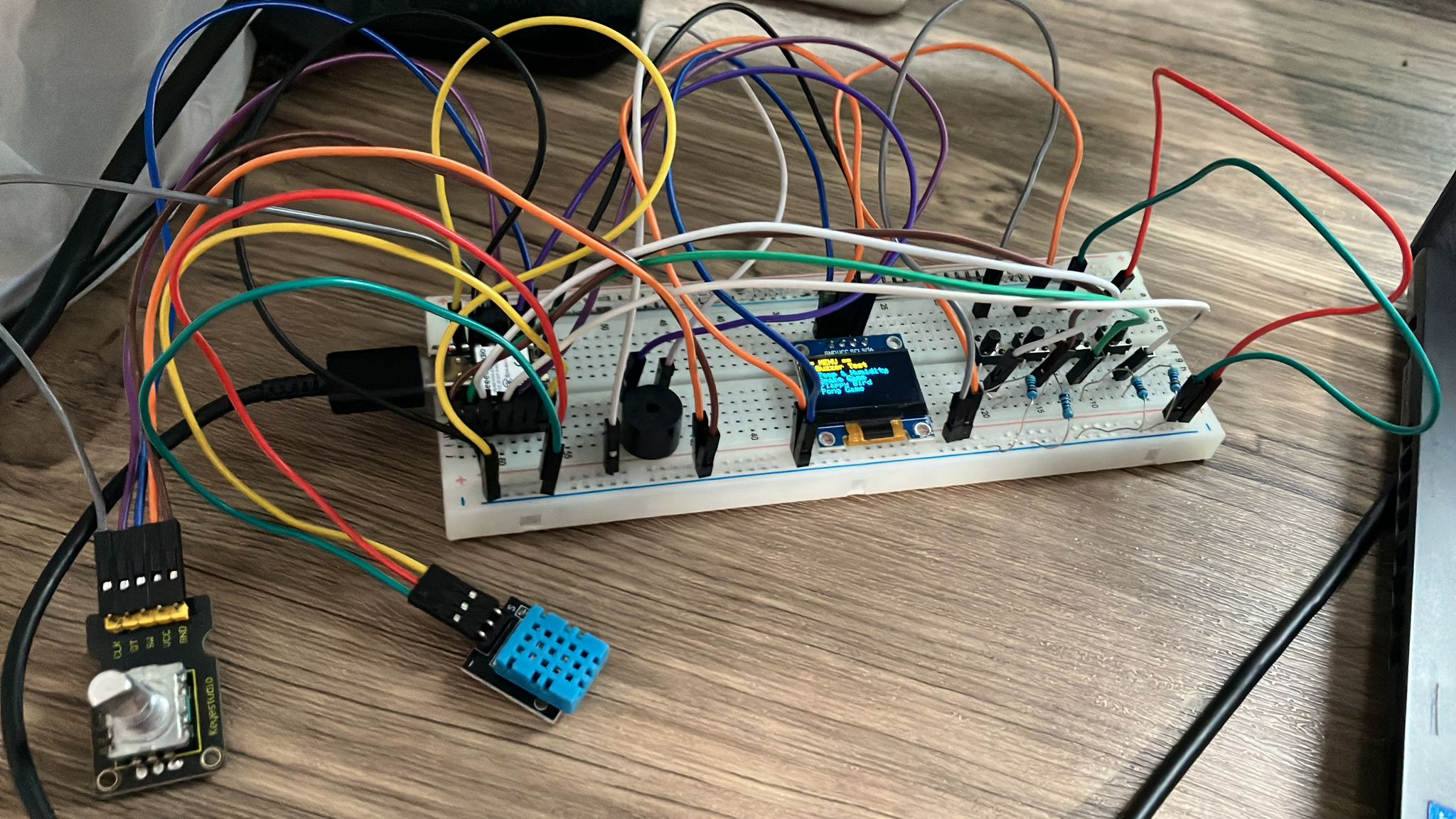

After testing each code individually, I decided to merge all the codes together and be able to switch between them using a menu. This was when I added the rotary encoder to scroll through the menu.

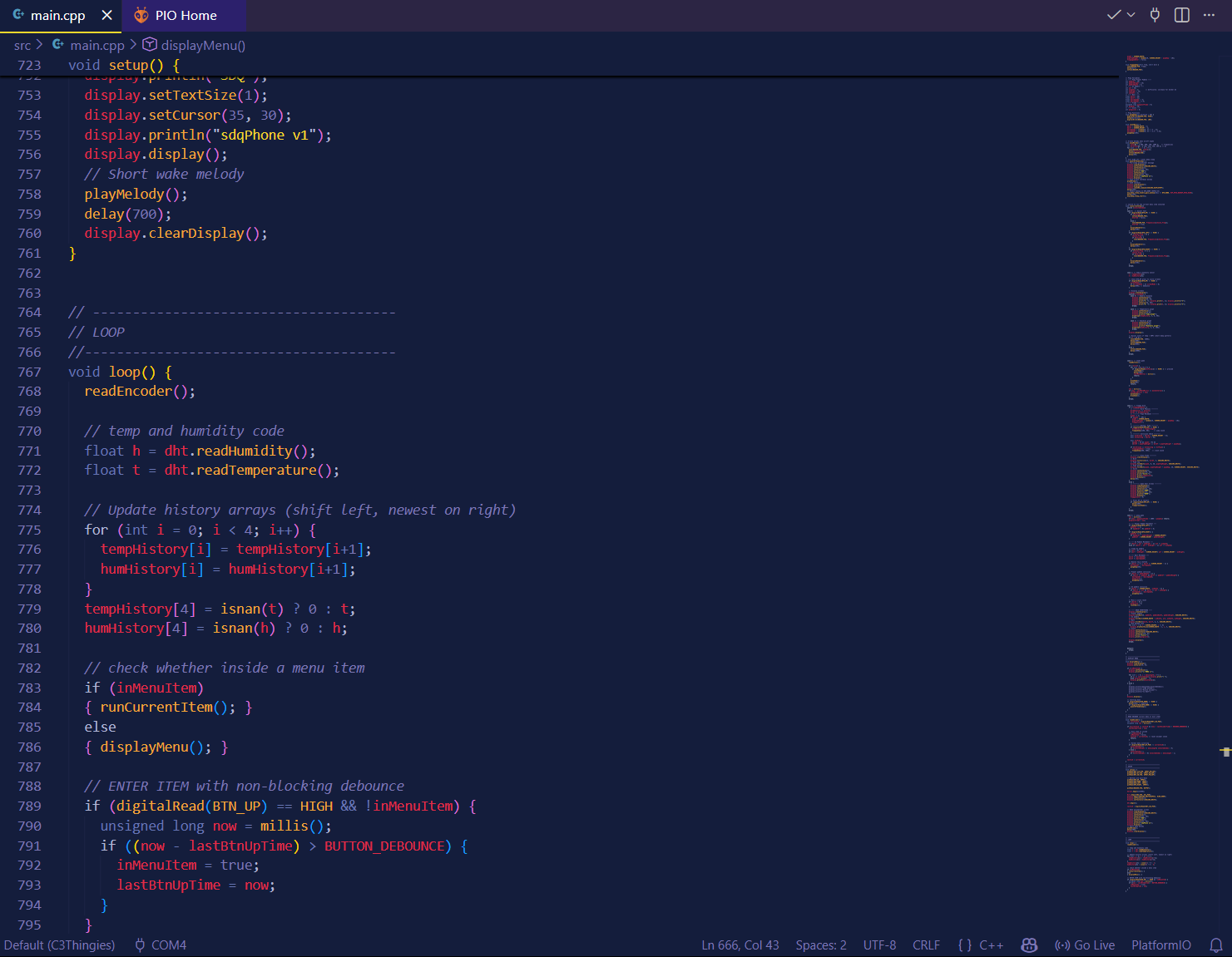

The final version of the code had around 800 lines. This was coded in C++ using PlatformIO on Visual Studio Code. The project code can be downloaded here.

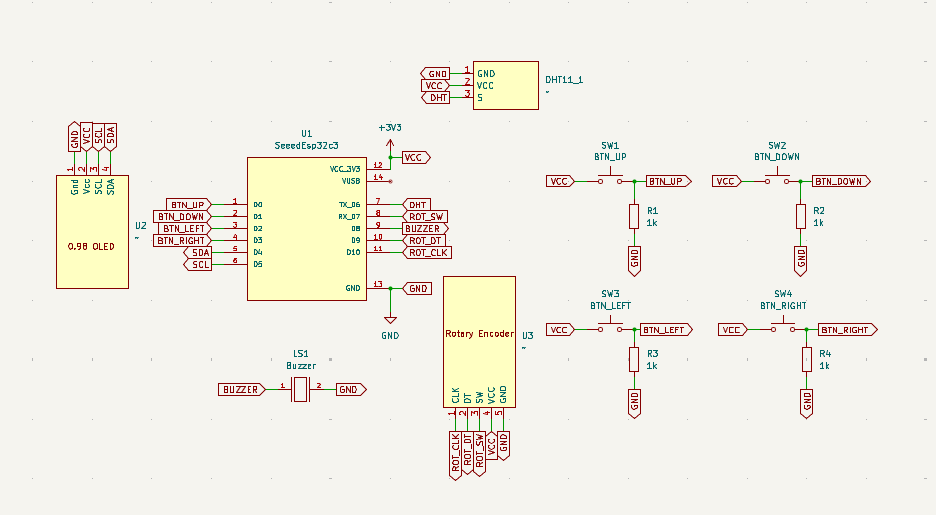

To design the PCB, I used KiCad. Here is the schematic:

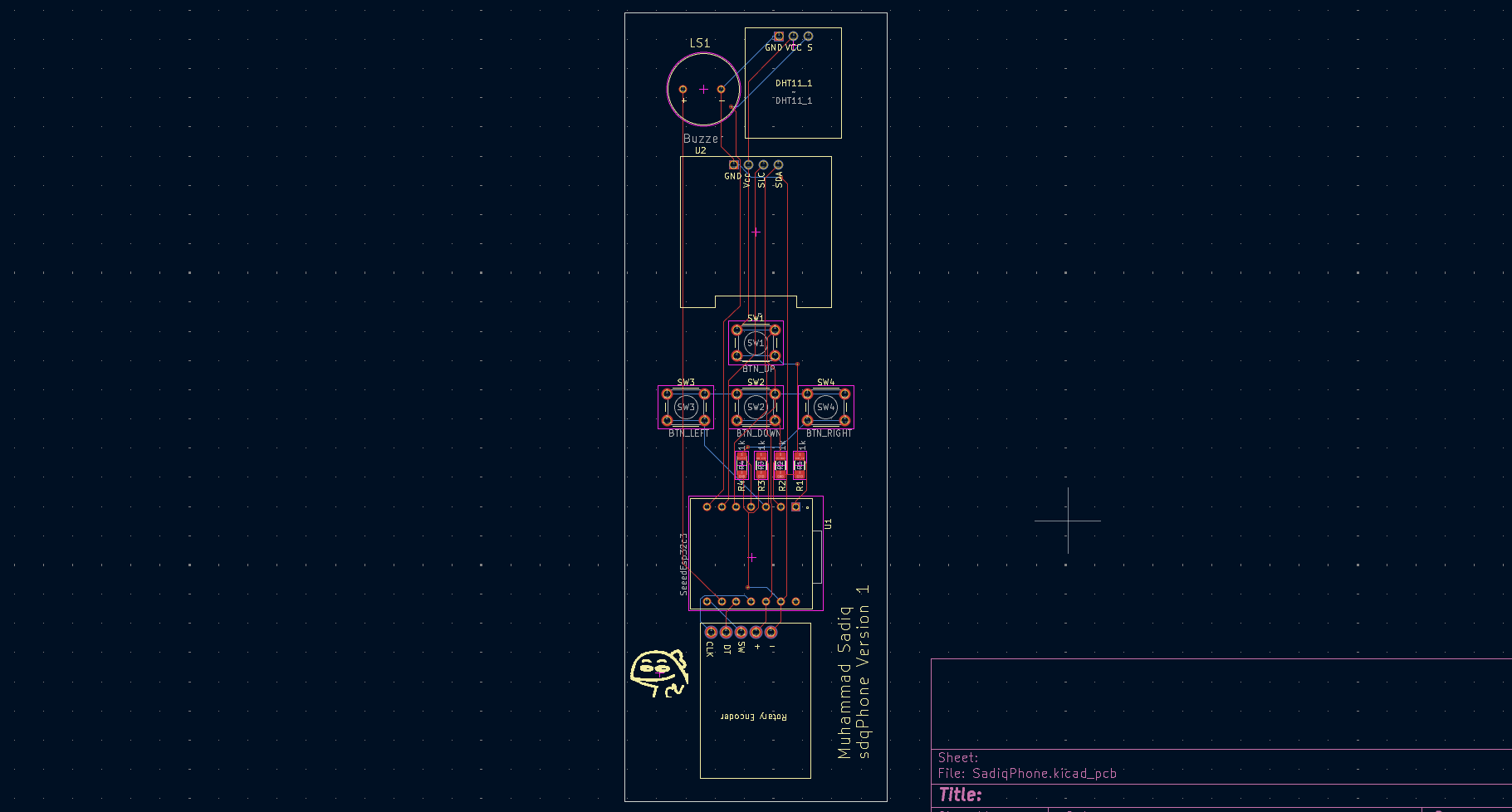

And here is the PCB wiring. I used the auto-router as the circuit is quite simple.

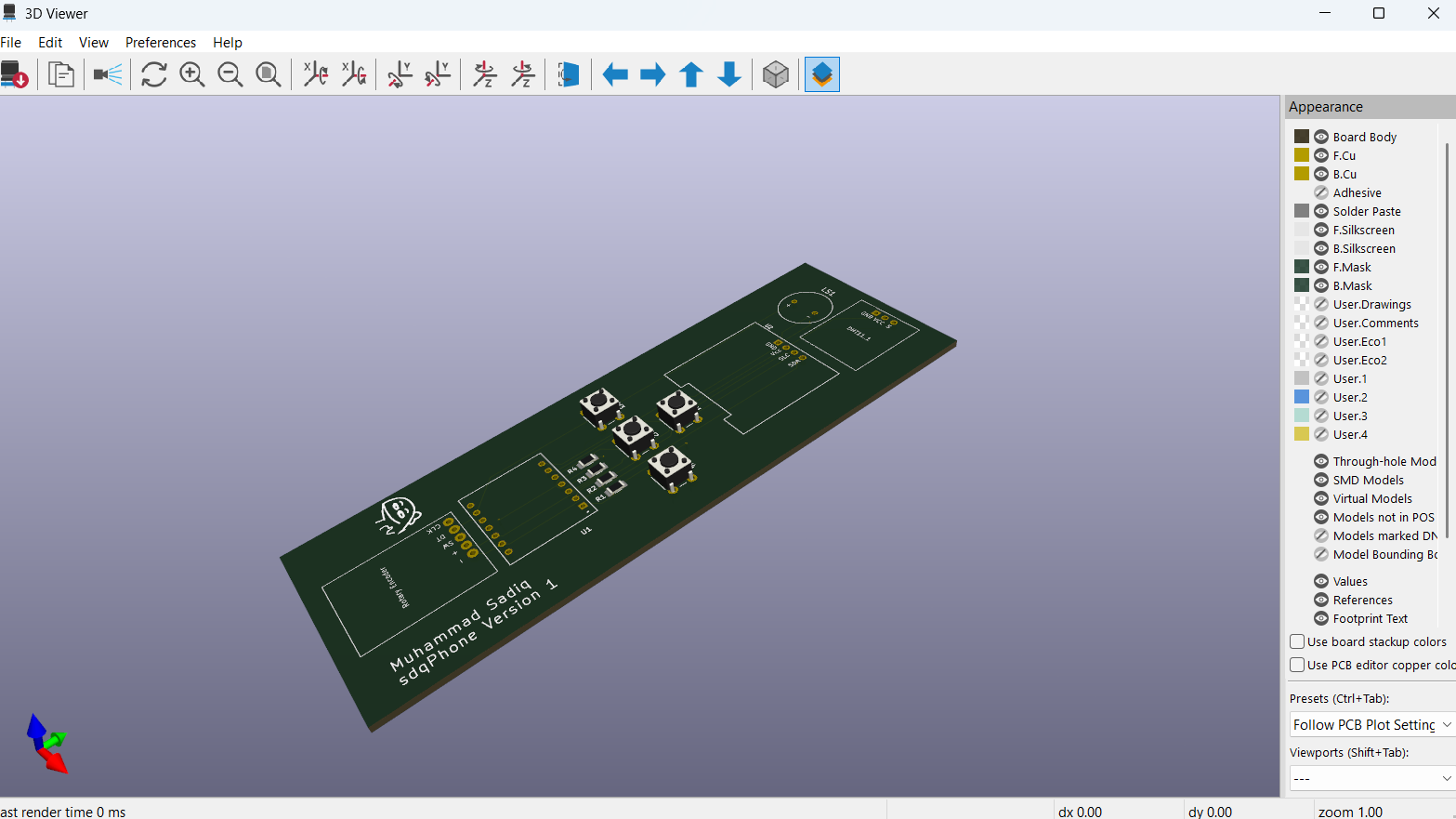

3D View of the PCB:
You can download the schematics here.

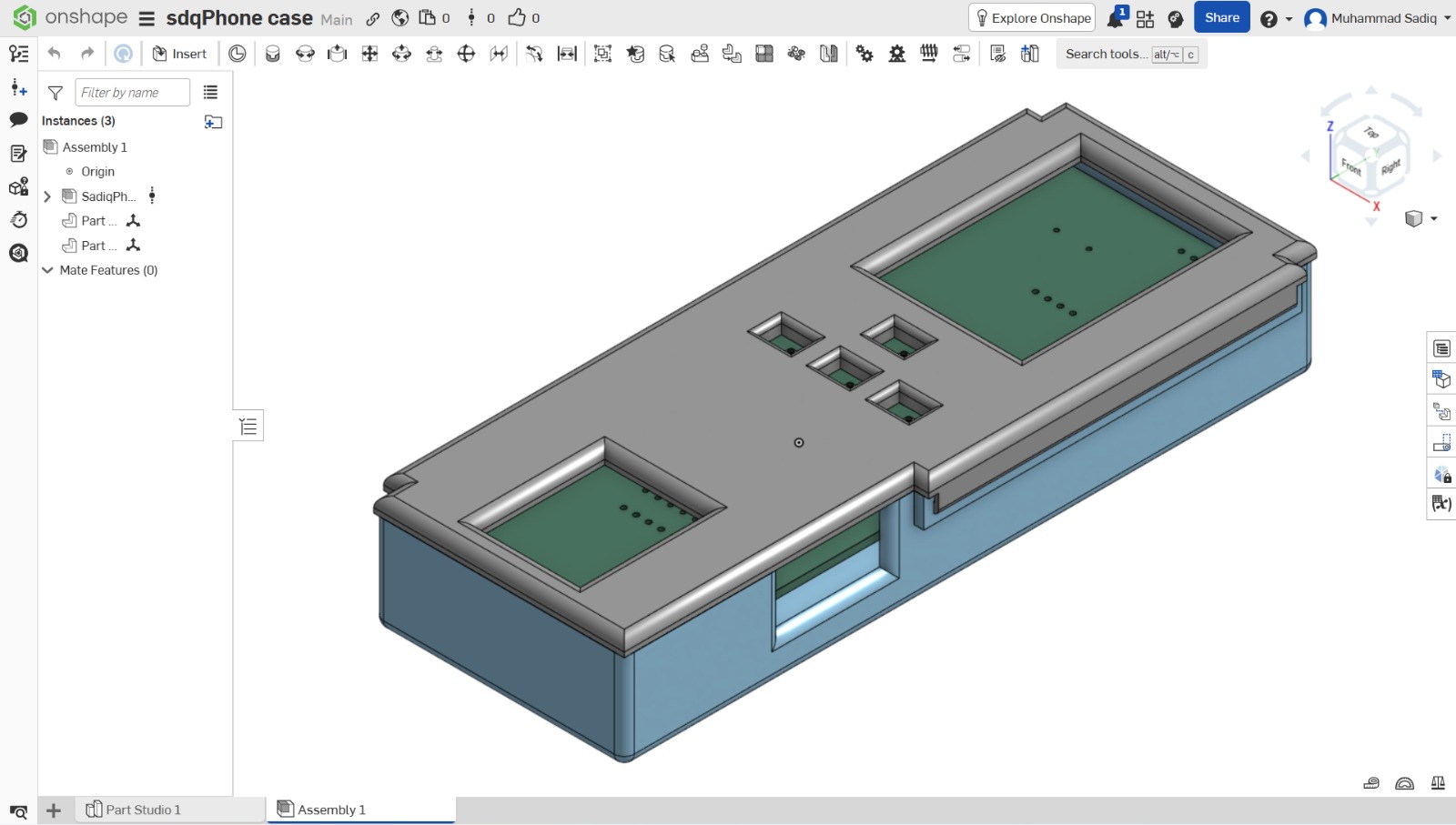

After I sent the PCB design to JLCPCB for manufacturing, I designed the case for it using Onshape.
I asked my friend to help 3D print the case for me, and once I received the PCB, I soldered all the components and assembled my project.

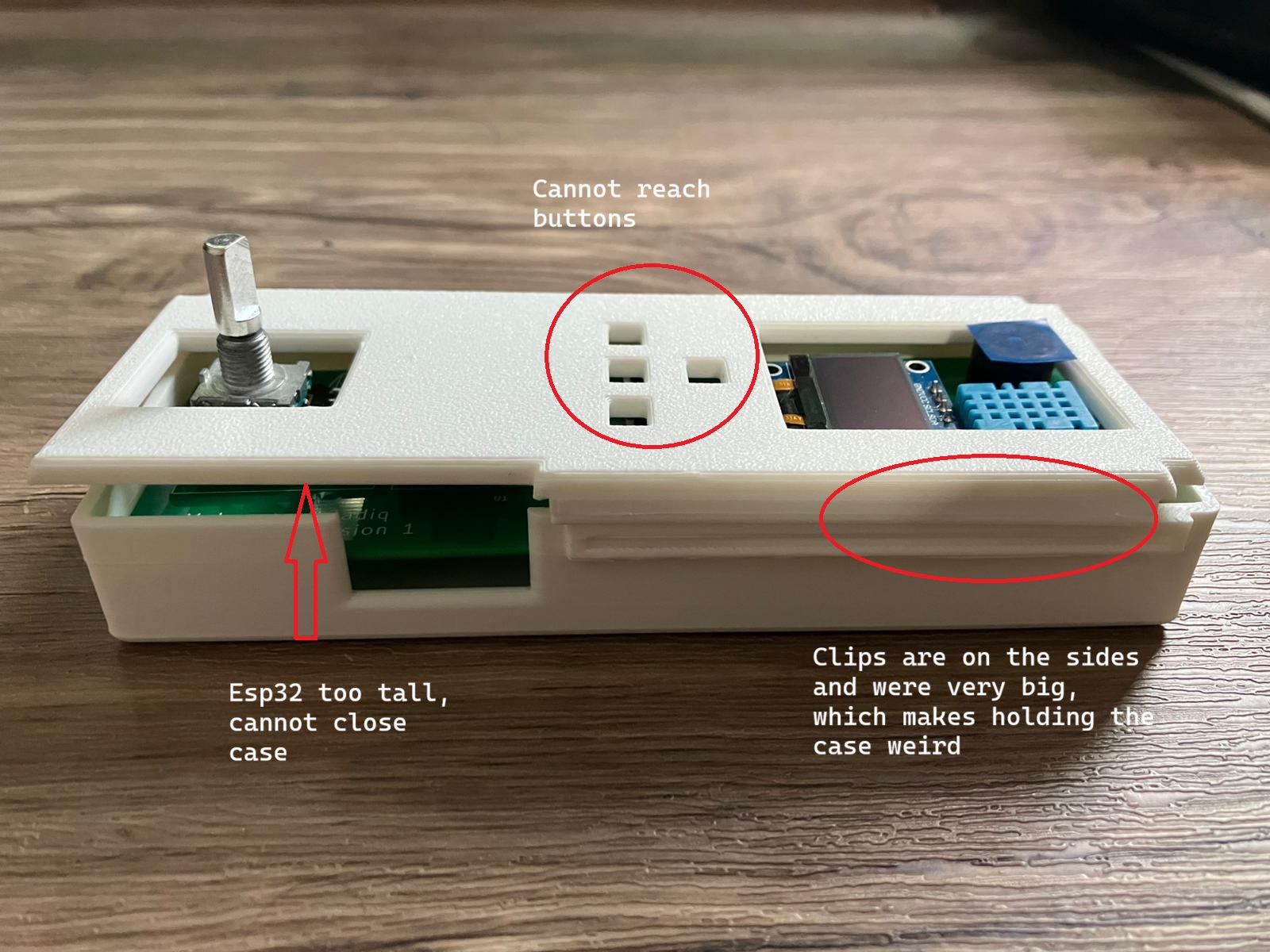

But then there were a few problems with my design...

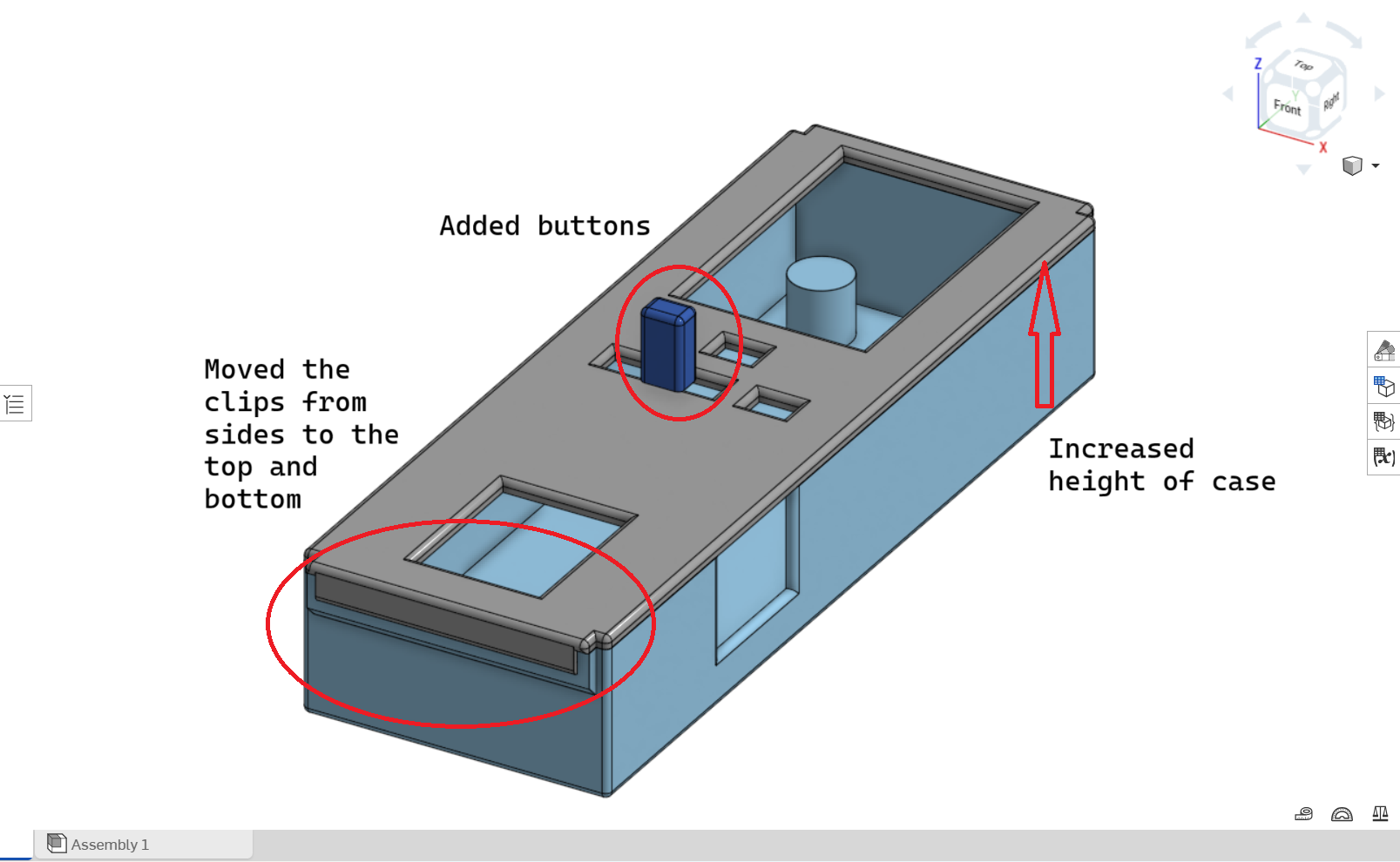

I redesigned the case with the following changes:
3D model of the case can be downloaded here.

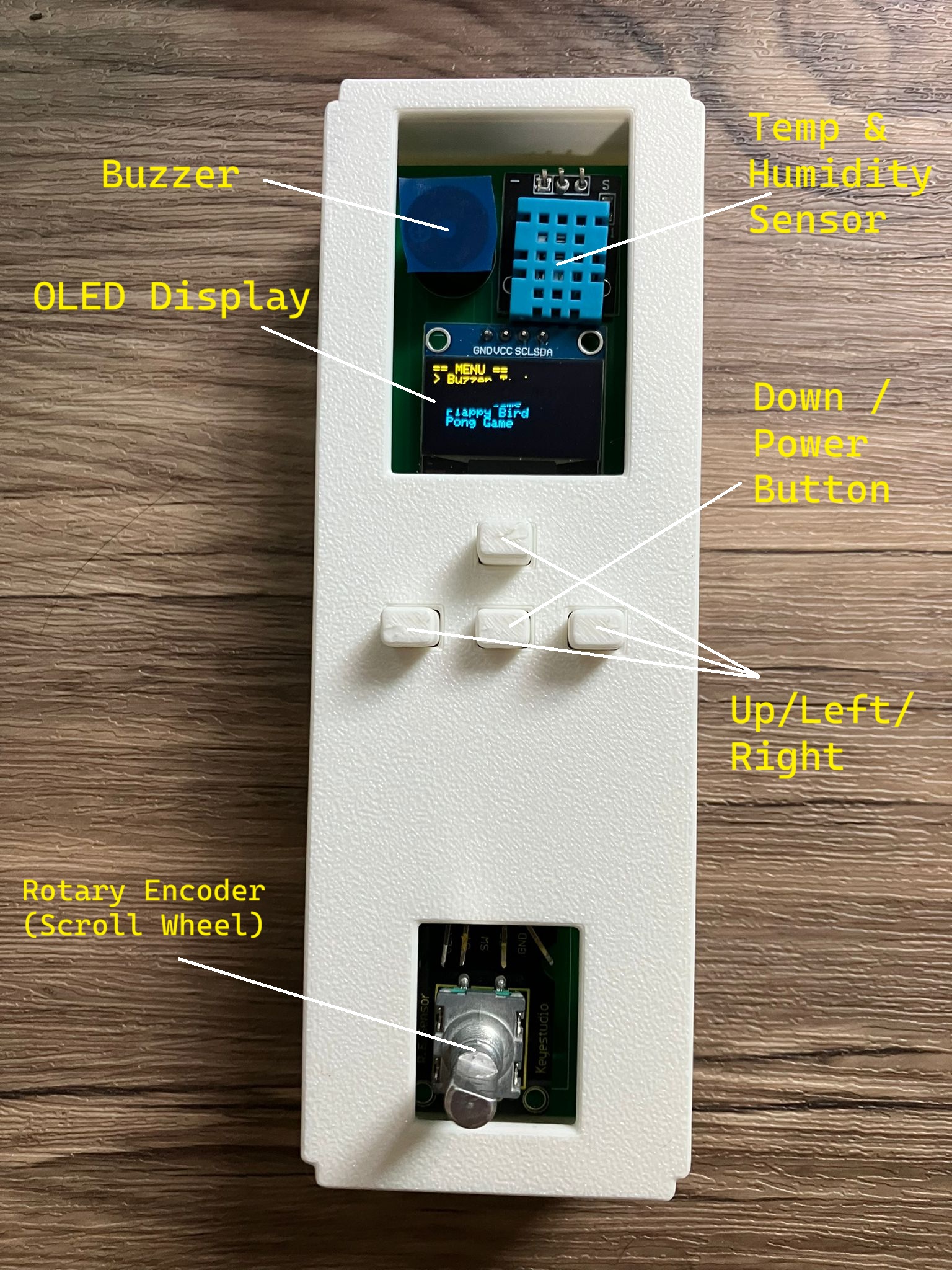

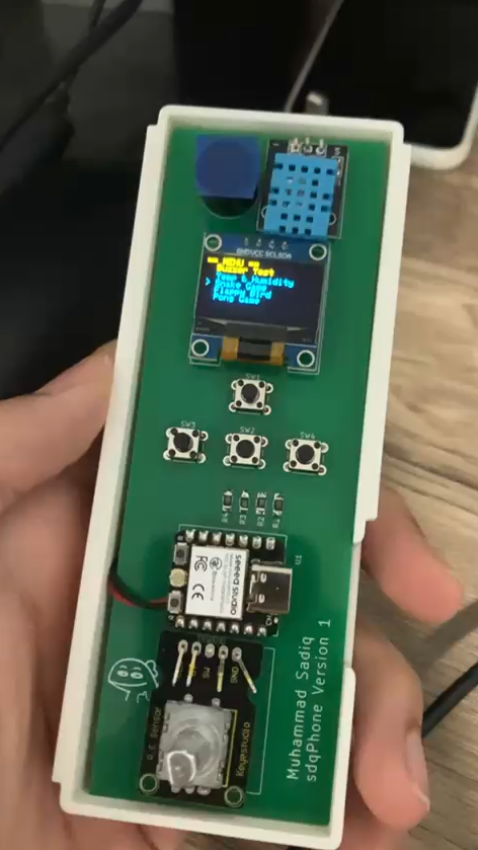

Here is the finished project after reassembling:
